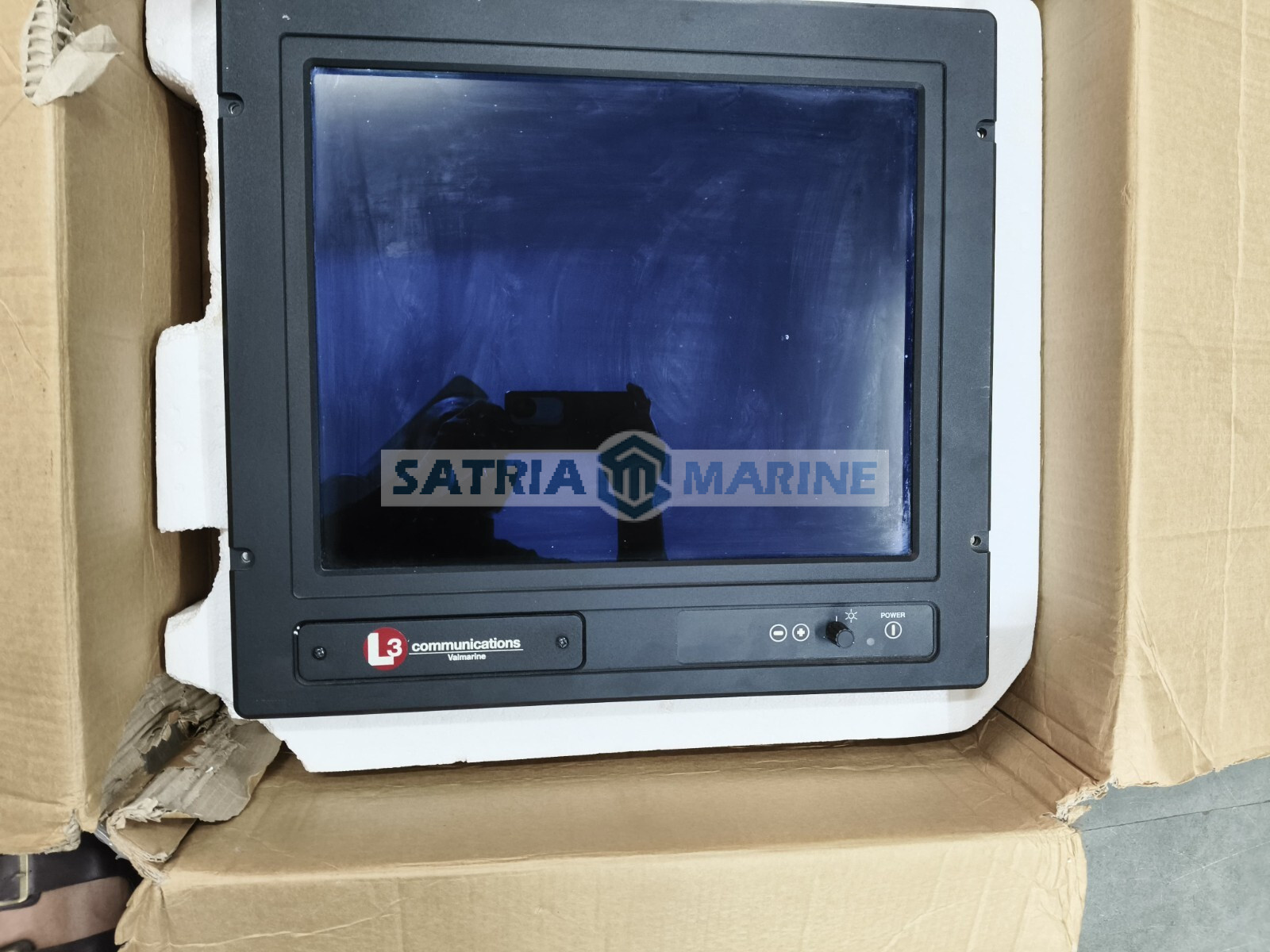

HATTELAND 19-Inch Marine Display

Product Description

ON SALE HATTELAND 19-Inch Marine Display. is a premium-grade marine monitor designed for ECDIS, RADAR, conning, and control systems.

Hatteland 19-inch marine displays, like those in Series X G2, are rugged, high-performance units with 1280×1024 (SXGA) resolution, LED backlighting, and typically MVA TFT panels for wide viewing angles, offering features like Glass Display Control (GDC), multi-power input (AC/DC), and options for multi-touch or high-brightness (sunlight readable). Key specs include typical brightness around 350-450 cd/m², contrast ratios of 1500:1 or higher, IP66 front protection, and support for various video inputs (DVI, DisplayPort, Composite) and communication protocols, all designed for demanding maritime environments.

Key Specifications :

• Display Type : 19.0″ TFT Active-Matrix LCD, MVA Technology, LED Backlight.
• Resolution : 1280 x 1024 (SXGA).
• Aspect Ratio : 5:4.
• Brightness : Typically 350-450 cd/m² (with High Bright options available).
• Contrast Ratio : Around 1500:1 (typical).
• Viewing Angles : Wide (e.g., 85° up/down/left/right).
• Response Time : Around 12-35ms (typical).
• Video Inputs : DVI-I, DisplayPort (DP1.2), Composite Video (BNC).
• Power : Multi-power (100-240V AC & 24V DC).
• Environmental : IP66 front rating, -20°C to 60°C operating/storage.
• Features : ECDIS compliant (factory standard), PBP (Picture-by-Picture), PIP (Picture-in-Picture), dimmable.
