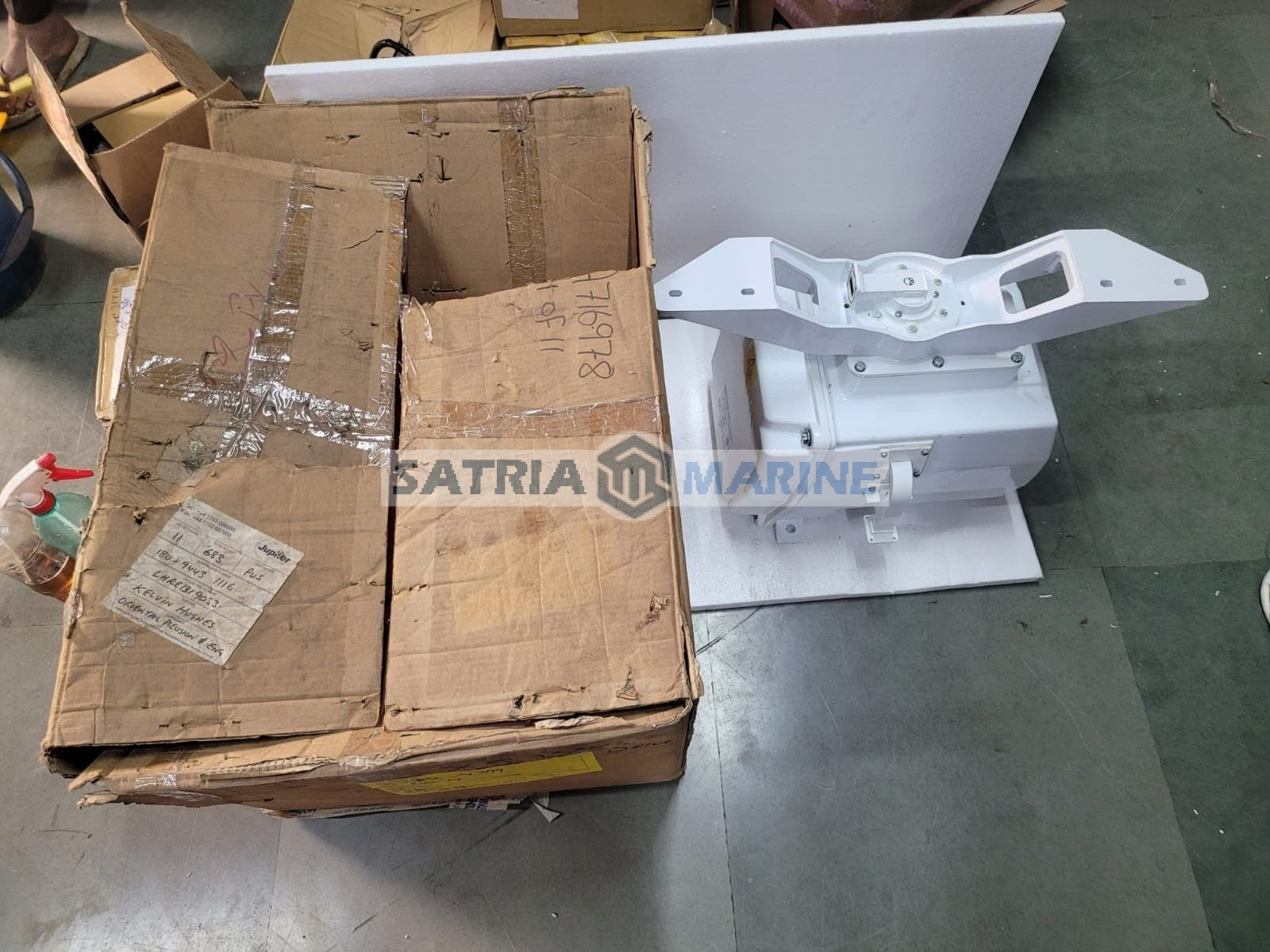

Kelvin Hughes X Band Scanner Cae-A30-22 (2.5 M)

Product Description

ON SALE Kelvin Hughes X Band Scanner Cae-A30-22 (2.5 M). This Kelvin Hughes X-Band Scanner is a top-quality device designed for electronics and navigation.

The Kelvin Hughes CAE-A30-22 is an X-band radar turning pedestal, typically part of the Manta or MK5 radar series. The “2.5 M” designation refers to the length of the antenna array (aerial) attached to the scanner unit.

Core Specifications :

• Model Number : CAE-A30-22
• Radar Band : X-Band (approx. 9.4 GHz)
• Peak Power Output : 10 kW (standard for the MK5 version)
• Antenna Length : 2.5 Meters (provides narrower beamwidth for better target separation compared to standard 1.3m or 1.9m arrays)
• Rotation Speed : Standard Speed (approx. 24 rpm); High-speed versions typically use different suffix codes
• Application : Professional maritime navigation, compliant with IMO requirements for commercial shipping

Technical Features :

• Construction : Up mast configuration (integrated transceiver and turning mechanism), housed in a weather-resistant pedestal
• Signal Processing : Features beam sharpening and improved target resolution to distinguish between close-proximity obstacles
• Installation : Designed for ease of installation with a single waterproof connector and an integral health monitor
• Operating Conditions : Engineered to remain reliable in extreme maritime weather conditions
