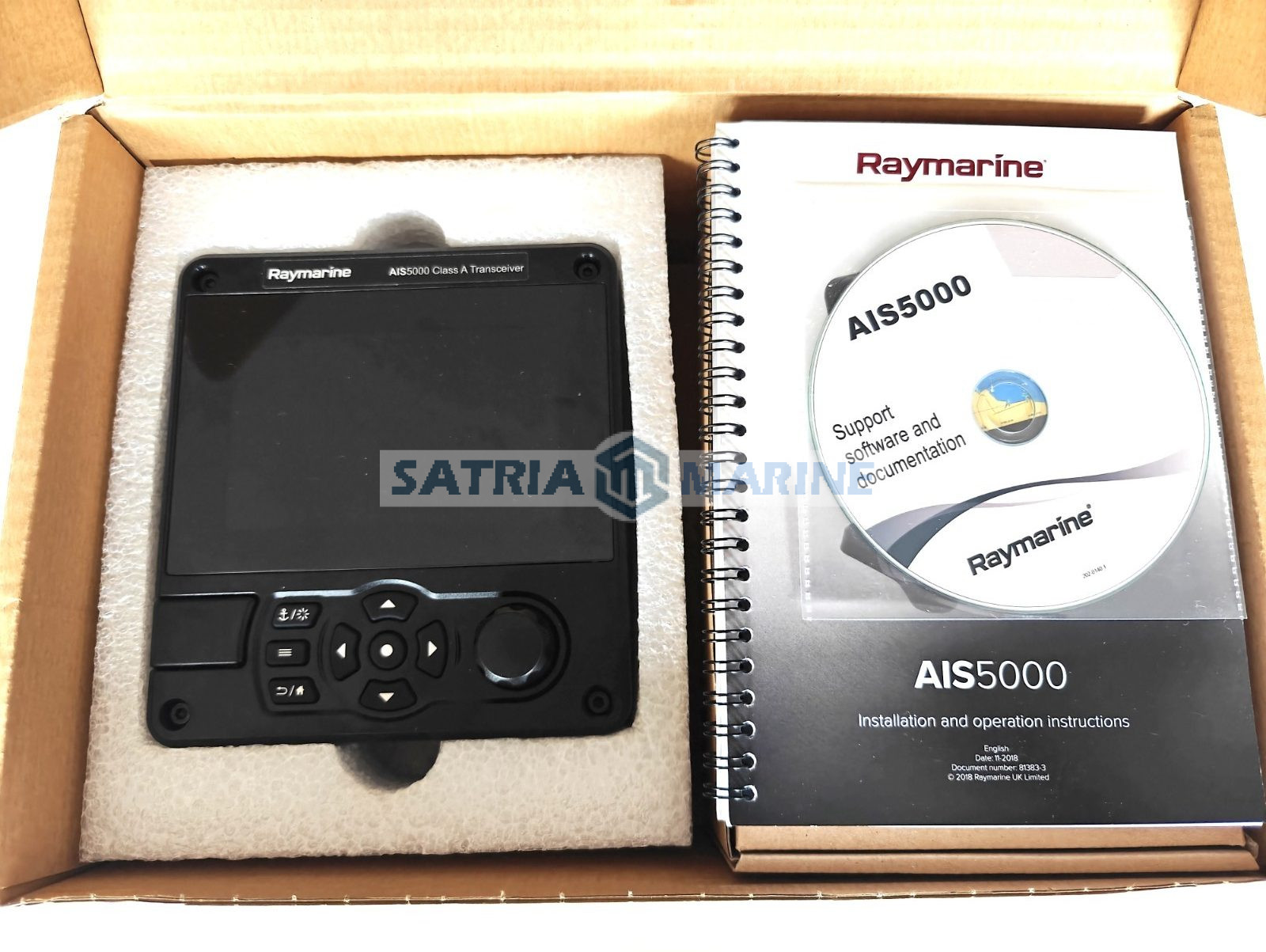

Raymarine AIS5000 AIS Transceiver

Product Description

ON SALE Raymarine AIS5000 AIS Transceiver. This device offers robust Class A AIS networking capabilities and additional security features.

The Raymarine AIS5000 AIS Transceiver is a high-quality electronic device designed for marine navigation. Manufactured by Raymarine, a trusted brand in the boating industry, this transceiver is sure to provide reliable and accurate performance. With its manufacturer part number 80652, the Raymarine AIS5000 AIS Transceiver is a top choice for boat owners looking to enhance their GPS and chartplotter systems.

Raymarine AIS5000 Key Specifications :

• Transceiver Type : Class A (certified to IEC 61993-2, ITU-R M.1371-5).
• Primary Applications : First responders, search and rescue, law enforcement, and commercial vessels.
• Security Features : Supports encrypted messaging and Blue Force Tracking (BFT) for secure location sharing among authorized units, certified to the US Federal Information Processing Standard (FIPS 140-2).
• Operation Modes : Normal transmission mode (full Class A) and silent mode (receive only) for anti-piracy or EMCON (Emissions Control) operations.
• User Interface : Integrated 5-inch (800×480) color LCD display with Electronic Navigation Chart (ENC) mapping option.
• Connectivity : NMEA 2000 (Micro-C), NMEA 0183 (multiple bi-directional ports), Wi-Fi (802.11 b/g/n), and optional Pilot port.
• Transmission Power : Can automatically switch between 1 W and 12.5 W.
• GNSS receiver : 72 channels, supports parallel dual mode operation of GPS and GLONASS, antenna included.
• Environment : IPx6 and IPx7 rated (waterproof), designed to withstand high levels of shock and vibration.
• Physical Dimensions : 152 mm x 165 mm x 79 mm (LxWxH).
• Weight : 2 kg.
• Power Supply : 12 to 24 V DC, power consumption less than 12 W.
