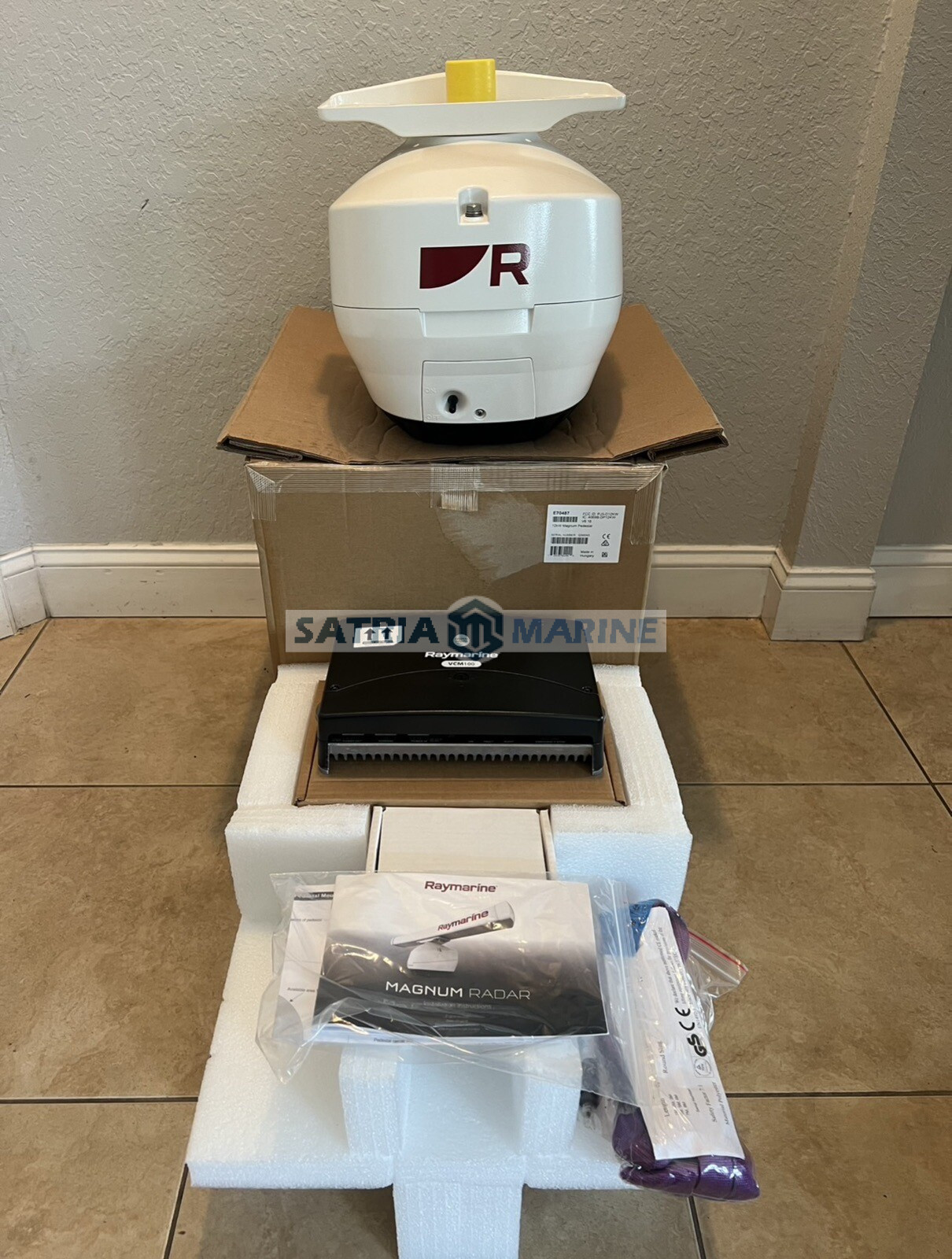

Raymarine Radar Pedestal 12kw (E70487)

Product Description

ON SALE Raymarine Radar Pedestal 12kw (E70487). This Raymarine radar pedestal is a top-of-the-line electronic navigation system.

The Raymarine Magnum 12kW Pedestal (E70487) is a high-performance open-array radar component offering a 12kW power output, a maximum range of 96 nautical miles, and a durable, waterproof design. It is compatible with a 4-foot or 6-foot antenna array (sold separately).

General Specifications

• Power Output : 12kW
• Max Range Scale : 96 nautical miles (with 6ft antenna)
• Voltage : 10.8 to 32 volts DC (using supplied VCM100)
• Power Consumption : <110W (Transmit) / <30W (Standby) / <1.2W (Sleep)
• Rotation Rate : 24 rpm / 48 rpm
• Waterproofing : IPX6
• Operating Temperature : 14°F to 131°F (-10°C to +55°C)
• Pedestal Weight : 52.8 lbs (24 kg)
• Transmit Frequency : 9405 MHz ±20 MHz
• Warm-up Time : 75 seconds
