Sailor 6588 DGNSS Receiver 6004 6286 DGNSS Antenna

Product Description

FLAS SALE Sailor 6588 DGNSS Receiver 6004 6286 DGNSS Antenna-Active. Used but in excellent condition. Tested & with Working Condition.

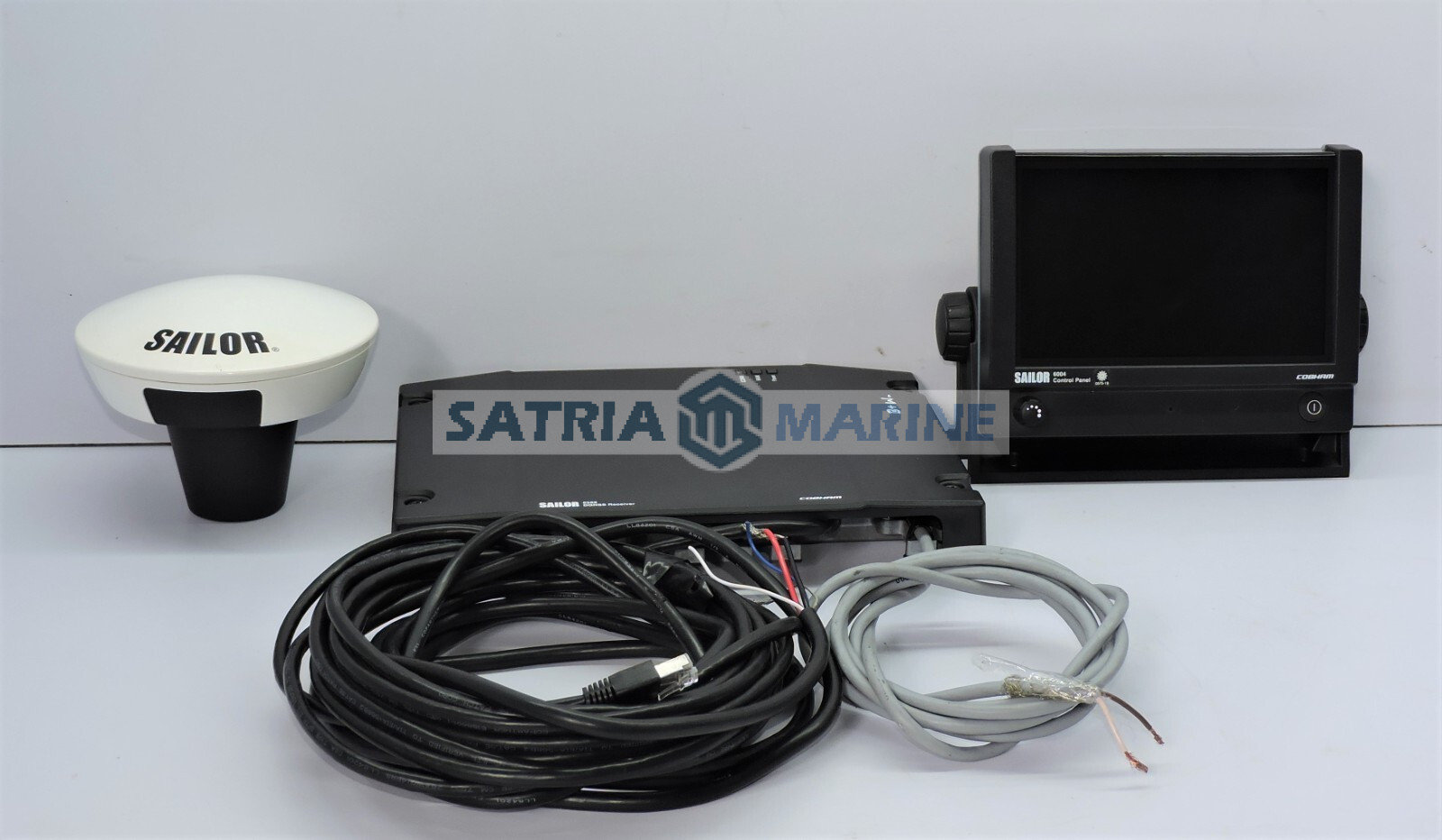

The Sailor 6588 DGNSS Receiver, paired with the 6004 Control Panel and 6286 Active Antenna, forms a robust positioning system using GPS/GLONASS, providing sub-meter accuracy with DGNSS, multiple NMEA interfaces, LAN connectivity, and compatibility with ECDIS/INS systems for accurate navigation and data distribution. Key specs include 30 channels, 10.8-31.2V DC power, LAN/NMEA ports, and IEC 60945 compliance for marine use, ensuring reliable position data for vessels.

SAILOR 6588 DGNSS Receiver (The “Brain”)

• System : GPS/GLONASS, Beacon (DGNSS), 30 Channels.
• Accuracy : ~1m with DGNSS, 1.5m without.
• Interfaces : Dual LAN (RJ45), NMEA 0183 (in/out), PPS, Speed Log, Alarm Relay.
• Power : 10.8-31.2V DC, ~5W.
• Connectivity : Connects to antenna (TNC), power, and Control Panel via LAN.

SAILOR 6004 Control Panel (The Display)

• Function : User interface for system management and data display.
• Mounting : Flush, table, or bulkhead mount.
• Power : 10.8-31.2V DC.
• Connection : LAN to Receiver.

SAILOR 6286 DGNSS Antenna-Active (The Sensor)

• Type : Active (includes LNA), waterproof (IPx6/IPx8).
• Role : Receives satellite signals (GPS, GLONASS) and DGNSS beacon signals.
• Note : Not user-serviceable; requires authorized personnel for opening.

System Features :

• Data Distribution : Shares data (ECDIS, INS, Master Clock) via LAN/NMEA.
• Reliability : IEC 60945 protected for marine environments.
• Cobham Design : 100% designed in-house by Cobham.
